Our new 1w FX projector has built-in grating and lumia wheels controlled by dmx to take your show to the next level at an affordable price.

Red 400mw/638nm | Green 300mw/520nm | Blue 300mw/445nm



SKU: CCFX-1W Category:

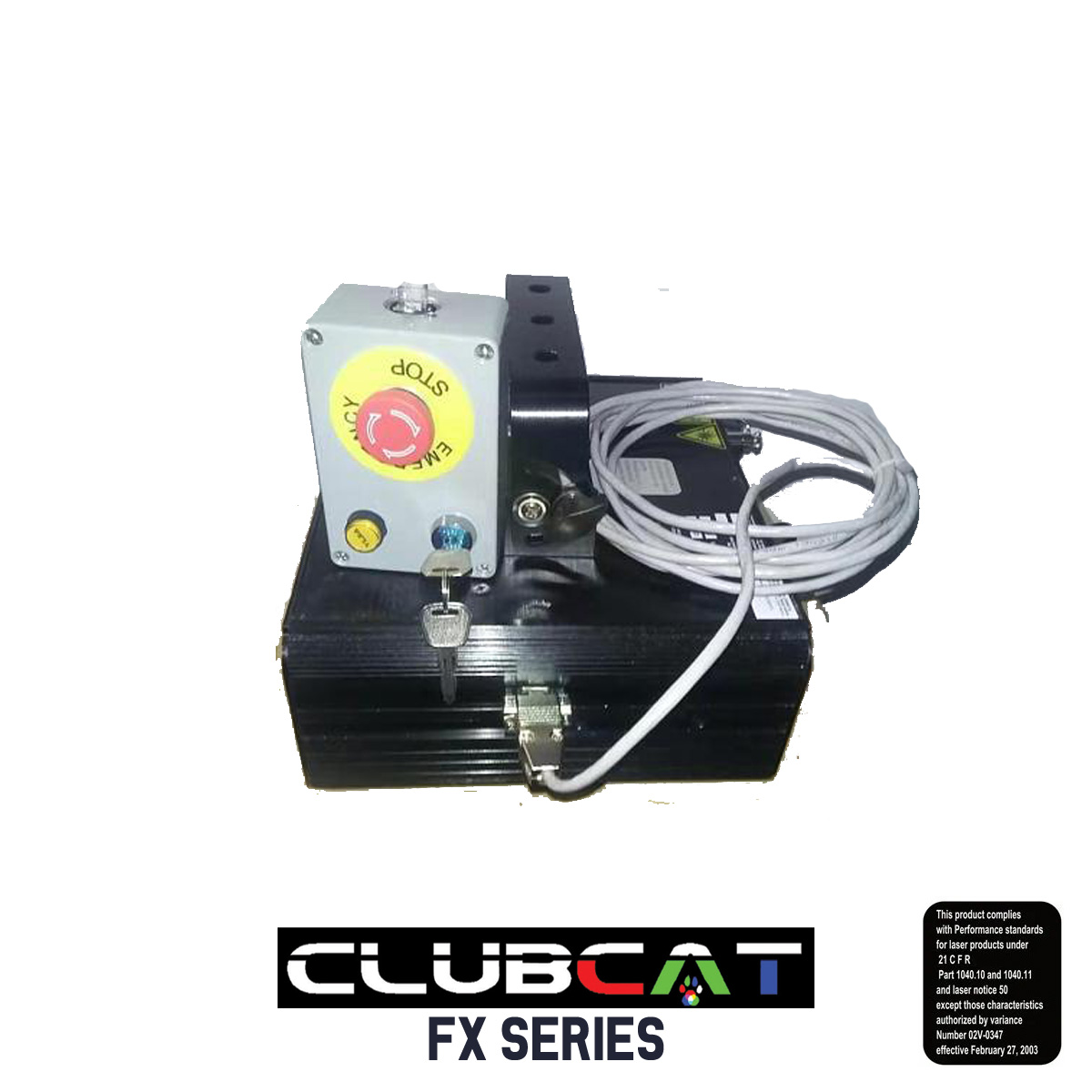

Our new Clubcat FX series 1W RGB laser projector boasts analog modulation and 30kpps scanners which can be used for a wide array of applications such as beamshows, animation, graphics, and text. However, the FX series brings a whole new dimension to laser light with grating and lumia wheels integrated into the beam table inside the projector. These built-in gratings are ideal for creating endless possibilities of backgrounds, full of color and fun patterns.

Included: Clubcat FX 1W laser projector, Roadcase, Power cable, Remote interlock stop, Interlock adapter, Product Manual

luminance danger


Laser class: 4
Scanners: 30kpps at 8 degrees
Operation modes: ILDA in/out, DMX for grating and lumia wheels
Red:400mw 638nm <1.2mrad 4*2mm
Green:300mw 520nm <1.2mrad 4*2mm
Blue:300mw 445nm <1.2mrad 4*4mm
Laser safety features: Key switch, Interlock interface, overload protection on X and Y Galvos for best safeguarding against failure, and mechanical shutter
Power Input: 100v-240v AC 50/60Hz
Modulation: Analog
Power consumption: 75W
Weight: 20 lbs
Laser Dimensions: 12.5″ x 11.5″ x 7″

Additional information

Weight 10 lbs
Dimensions 30.8 × 16.8 × 29 in
